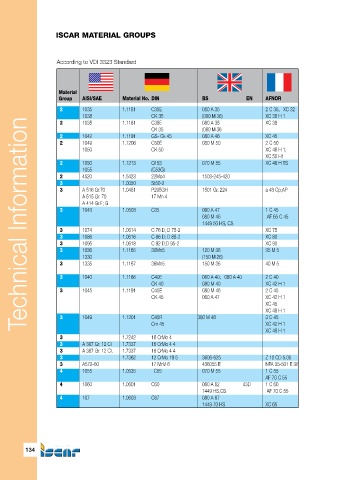

ISCAR MATERIAL GROUPS

According to VDI 3323 Standard

Material
Group AISI/SAE Material No. DIN BS EN AFNOR

2 1035 1.1181 C35E 080 A 35 2 C 35, XC 32
1038 CK 35 (080 M 36) XC 38 H 1
Technical Information
2 1035 1.1181 C35E 080 A 35 XC 38
CK 35 (080 M 36
2 1042 1.1191 GS- Ck 45 080 A 46 XC 45
2 1049 1.1206 C50E 080 M 50 2 C 50
1050 CK 50 XC 48 H 1;
XC 50 H1
2 1050 1.1213 Cf 53 070 M 55 XC 48 H TS
1055 (C53G)
2 4520 1.5423 22Mo4 1503-245-420
3 1.0050 St50-2
3 A 516 Gr.70 1.0481 P295GH 1501 Gr. 224 a 48 Cp;AP
A 515 Gr. 70 17 Mn 4
A 414 Gr.F; G
3 1043 1.0503 C35 060 A 47 1 C 45
080 M 46 AF 65 C 45
1449 50 HS, CS
3 1074 1.0614 C 76 D; D 75-2 XC 75
3 1086 1.0616 C 86 D; D 85-2 XC 80
3 1095 1.0618 C 92 D;D 95-2 XC 90
3 1036 1.1165 30Mn5 120 M 36 35 M 5
1330 (150 M 28)
3 1335 1.1167 36Mn5 150 M 36 40 M 5

3 1040 1.1186 C40E 060 A 40, 080 A 40 2 C 40
CK 40 080 M 40 XC 42 H 1
3 1045 1.1191 C45E 080 M 46 2 C 45
CK 45 060 A 47 XC 42 H 1
XC 45
XC 48 H 1
3 1049 1.1201 C45R 080 M 46 3 C 45
Cm 45 XC 42 H 1
XC 48 H 1
3 1.7242 18 CrMo 4
3 A 387 Gr. 12 CI 1.7337 16 CrMo 4 4
3 A 387 Gr. 12 CI. 1.7337 16 CrMo 4 4
3 1.7362 12 CrMo 19 5 3606-625 Z 10 CD 5.05
3 A572-60 17 MnV 6 436055 E NFA 35-501 E 36
4 1055 1.0535 C55 070 M 55 1 C 55
AF 70 C 55
4 1060 1.0601 C60 060 A 62 43D 1 C 60
1449 HS,CS AF 70 C 55
4 107 1.0603 C67 080 A 67
1449 70 HS XC 65
