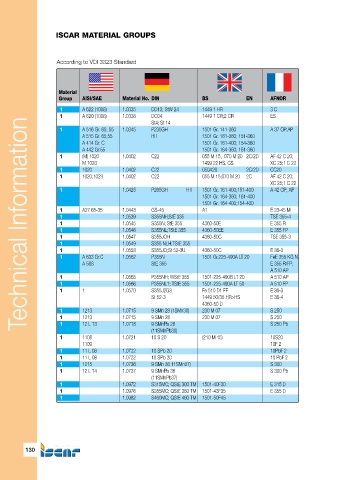

ISCAR MATERIAL GROUPS

According to VDI 3323 Standard

Material
Group AISI/SAE Material No. DIN BS EN AFNOR

1 A 622 (1008) 1.0335 DD13; StW 24 1449 1 HR 3 C
1 A 620 (1008) 1.0338 DC04 1449 1 CR;2 CR ES
Technical Information
St4; St 14
1 A 516 Gr. 65; 55 1.0345 P235GH 1501 Gr. 141-360 A 37 CP;AP
A 515 Gr. 65;55 H I 1501 Gr. 161-360; 151-360
A 414 Gr. C 1501 Gr. 161-400; 154-360
A 442 Gr.55 1501 Gr. 164-360; 161-360
1 (M) 1020 1.0402 C22 055 M 15, 070 M 20 2C/2D AF 42 C 20;
M 1023 1499 22 HS, CS XC 25;1 C 22
1 1020 1.0402 C22 050A20 2C/2D CC20
1 1020;1023 1.0402 C22 055 M 15;070 M 20 2C AF 42 C 20;
XC 25;1 C 22
1 1.0425 P265GH H ll 1501 Gr. 161-400;151-400 A 42 CP; AP
1501 Gr. 164-360; 161-400
1501 Gr. 164-400;154-400
1 A27 65-35 1.0443 GS-45 A1 E 23-45 M
1 1.0539 S355NH;StE 335 TSE 355-4
1 1.0545 S355N; StE 355 4360-50E E 355 R
1 1.0546 S355NL;TStE 355 4360-50EE E 355 FP
1 1.0547 S355JOH 4360-50C TSE 355-3
1 1.0549 S355 NLH;TStE 355
1 1.0553 S355JO;St 52-3U 4360-50C E 36-3
1 A 633 Gr.C 1.0562 P355N 1501 Gr.225-490A LT 20 FeE 355 KG N
A 588 StE 355 E 355 R/FP;
A 510 AP
1 1.0565 P355NH; WStE 355 1501-225-490B LT 20 A 510 AP
1 1.0566 P355NL1; TStE 355 1501-225-490A LT 50 A 510 FP
1 1 1.0570 S355J2G3 Fe 510 D1 FF E 36-3
St 52-3 1449 50/35 HR>HS E 36-4
4360-50 D
1 1213 1.0715 9 SMn 28 (1SMn30) 230 M 07 S 250
1 1213 1.0715 9 SMn 28 230 M 07 S 250
1 12 L 13 1.0718 9 SMnPb 28 S 250 Pb
(11SMnPb30)
1 1108 1.0721 10 S 20 (210 M 15) 10S20
1109 10F 2
1 11 L 08 1.0722 10 SPb 20 10PbF 2
1 11 L 08 1.0722 10 SPb 20 10 PbF 2
1 1215 1.0736 9 SMn 36 11SMn37) S 300
1 12 L 14 1.0737 9 SMnPb 36 S 300 Pb
(11SMnPb37)
1 1.0972 S315MC; QStE 300 TM 1501-40F30 E 315 D
1 1.0976 S355MC; QStE 360 TM 1501-43F35 E 355 D
1 1.0982 S460MC; QStE 460 TM 1501-50F45
