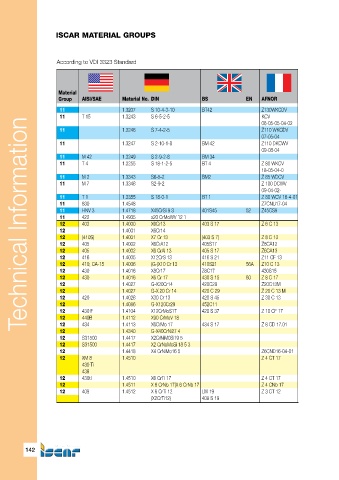

Page 142 - Die_and_Molds_User_Guide_7861458_2017

ISCAR MATERIAL GROUPS

According to VDI 3323 Standard

Material

Group AISI/SAE Material No. DIN BS EN AFNOR
11 1.3207 S 10-4-3-10 BT42 Z130WKCDV
11 T 15 1.3243 S 6-5-2-5 KCV
Technical Information
06-05-05-04-02
11 1.3246 S 7-4-2-5 Z110 WKCDV
07-05-04
11 1.3247 S 2-10-1-8 BM 42 Z110 DKCWV
09-08-04
11 M 42 1.3249 S 2-9-2-8 BM 34
11 T 4 1.3255 S 18-1-2-5 BT 4 Z 80 WKCV
18-05-04-0
11 M 2 1.3343 S6-5-2 BM2 Z 85 WDCV
11 M 7 1.3348 S2-9-2 Z 100 DCWV
09-04-02-
11 T 1 1.3355 S 18-0-1 BT 1 Z 80 WCV 18-4-01
11 630 1.4548 Z7CNU17-04
11 HNV 3 1.4718 X45CrSi 9 3 401S45 52 Z45CS9
11 422 1.4935 x20 CrMoWV 12 1
12 403 1.4000 X6Cr13 403 S 17 Z 6 C 13
12 1.4001 X6Cr14
12 (410S) 1.4001 X7 Cr 13 (403 S 7) Z 8 C 13
12 405 1.4002 X6CrA12 405S17 Z8CA12
12 405 1.4002 X6 CrAl 13 405 S 17 Z6CA13
12 416 1.4005 X12CrS 13 416 S 21 Z11 CF 13
12 410; CA-15 1.4006 (G-)X10 Cr 13 410S21 56A Z10 C 13
12 430 1.4016 X8Cr17 Z8C17 430S15
12 430 1.4016 X6 Cr 17 430 S 15 60 Z 8 C 17
12 1.4027 G-X20Cr14 420C29 Z20C13M
12 1.4027 G-X 20 Cr 14 420 C 29 Z 20 C 13 M
12 420 1.4028 X30 Cr 13 420 S 45 Z 30 C 13
12 1.4086 G-X120Cr29 452C11
12 430 F 1.4104 X12CrMoS17 420 S 37 Z 10 CF 17
12 440B 1.4112 X90 CrMoV 18
12 434 1.4113 X6CrMo 17 434 S 17 Z 8 CD 17.01
12 1.4340 G-X40CrNi27 4
12 S31500 1.4417 X2CrNiM0Si19 5
12 S31500 1.4417 X2 CrNoMoSi 18 5 3
12 1.4418 X4 CrNiMo16 5 Z6CND16-04-01
12 XM 8 1.4510 Z 4 CT 17
430 Ti
439
12 430tI 1.4510 X6 CrTi 17 Z 4 CT 17
12 1.4511 X 6 CrNb 17(X 6 CrNb 17 Z 4 CNb 17
12 409 1.4512 X 6 CrTi 12 LW 19 Z 3 CT 12
(X2CrTi12) 409 S 19

142
