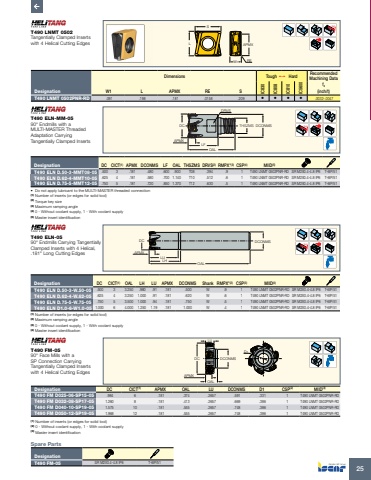

DC DCONMSAPMXLHLUOALRd%u00b0Designation DC CICT(1) OAL LH LU APMX DCONMS Shank RMPX%u00b0(2) CSP(3) MIID(4)T490 ELN D.50-3-W.50-05 .500 3 3.250 .980 .91 .181 .500 W .9 1 T490 LNMT 0502PNR-RD SR M2X0.4-4.8 IP6 T-6IP/51T490 ELN D.62-4-W.62-05 .625 4 3.250 1.000 .91 .181 .620 W .6 1 T490 LNMT 0502PNR-RD SR M2X0.4-4.8 IP6 T-6IP/51T490 ELN D.75-5-W.75-05 .750 5 3.500 1.000 .94 .181 .750 W .5 1 T490 LNMT 0502PNR-RD SR M2X0.4-4.8 IP6 T-6IP/51T490 ELN D1.0-6-W1.0-05 1.000 6 4.000 1.250 1.19 .181 1.000 W .4 1 T490 LNMT 0502PNR-RD SR M2X0.4-4.8 IP6 T-6IP/51(1) Number of inserts (or edges for solid tool) (2) Maximum ramping angle (3) 0 - Without coolant supply, 1 - With coolant supply (4) Master insert identification T490 ELN-0590%u00b0 Endmills Carrying Tangentially Clamped Inserts with 4 Helical, .181\DCLUOALDCONMS APMXD1Designation DC CICT(1) APMX OAL LU DCONMS D1 CSP(2) MIID(3)T490 FM D025-06-SP15-05 .984 6 .181 .374 .2657 .591 .331 1 T490 LNMT 0502PNR-RDT490 FM D032-08-SP17-05 1.260 8 .181 .413 .2657 .669 .386 1 T490 LNMT 0502PNR-RDT490 FM D040-10-SP19-05 1.575 10 .181 .555 .2657 .748 .386 1 T490 LNMT 0502PNR-RDT490 FM D050-12-SP19-05 1.968 12 .181 .555 .2657 .748 .386 1 T490 LNMT 0502PNR-RD(1) Number of inserts (or edges for solid tool) (2) 0 - Without coolant supply, 1 - With coolant supply (3) Master insert identification Spare PartsDesignationT490 FM-05 SR M2X0.4-4.8 IP6 T-6IP/51T490 FM-0590%u00b0 Face Mills with a SP Connection Carrying Tangentially Clamped Inserts with 4 Helical Cutting EdgesSAPMXW1 RELRd%u00b0Dimensions Tough 1 Hard Recommended Machining DataDesignation W1 L APMX RE S IC830 IC808 IC810 IC5600fz(inch/t)T490 LNMT 0502PNR-RD .091 .198 .181 .0158 .209 %u2022 %u2022 %u2022 %u2022 .0032-.0047T490 LNMT 0502Tangentially Clamped Inserts with 4 Helical Cutting EdgesDRVSAPMXLFOALDC THSZMS DCONMS Rd%u00b0Designation DC CICT(1) APMX DCONMS LF OAL THSZMS DRVS(2) RMPX%u00b0(3) CSP(4) MIID(5)T490 ELN D.50-3-MMT08-05 .500 3 .181 .480 .600 .900 T08 .394 .9 1 T490 LNMT 0502PNR-RD SR M2X0.4-4.8 IP6 T-6IP/51T490 ELN D.62-4-MMT10-05 .625 4 .181 .580 .700 1.140 T10 .512 .6 1 T490 LNMT 0502PNR-RD SR M2X0.4-4.8 IP6 T-6IP/51T490 ELN D.75-5-MMT12-05 .750 5 .181 .720 .850 1.370 T12 .630 .5 1 T490 LNMT 0502PNR-RD SR M2X0.4-4.8 IP6 T-6IP/51%u2022 Do not apply lubricant to the MULTI-MASTER threaded connection (1) Number of inserts (or edges for solid tool) (2) Torque key size (3) Maximum ramping angle (4) 0 - Without coolant supply, 1 - With coolant supply (5) Master insert identification T490 ELN-MM-0590%u00b0 Endmills with a MULTI-MASTER Threaded Adaptation Carrying Tangentially Clamped Inserts25MILLING
